Q200 3CH Rideshare Bundle
$279.99
2K QHD Front and
Full HD Rear Recording
The Q200 excels in capturing razor-sharp 2K QHD videos at 30fps, presenting crystal-clear footage with enhanced contrast and precise color balance. Powered by a dynamic Omnivision OS04C20 image sensor and advanced WDR technology, every detail is recorded, ensuring exceptional clarity, whether it’s day or night.
Super Night Vision 2.0
Revolutionize night time recording with enhanced video brightness and reduced image noise in low-light conditions with our advanced Super Night Vision technology. Leveraging Image Signal Processing (ISP) technology and real-time image processing, the system captures significantly greater detail at night. With the 2.0 version, enjoy the flexibility of having Super Night Vision in Continuous Mode and Parking Mode.
Super Night Vision ON
Super Night Vision OFF
Wide Dynamic Range (WDR)
Corrects images through color balance adjustment in environments with strong sunlight or shadows.
Smart Auto-Exposure (AE)
Adjusts the exposure to record clear footage when there is strong sunlight or headlight.
Dewarping Video Technology
Minimizes image distortion typically caused by a wide angle lens, and delivers a close-to-real image of the world.
Parking Surveillance Mode*
Elevate your parking protection with the ability to capture video evidence activated by impacts and/or motions while your vehicle is parked.
- Smart Parking Mode
- Energy Saving Mode
- Time Lapse
- Motion & Impact Detection
*Requires hardwiring cable accessory (included) and installation (professional installation recommended) or a THINKWARE OBD II cable accessory.
Smart Parking Mode
Prevents heat-related damage by automatically switching the dash cam to low-power mode if the vehicle’s interior temperature rises excessively during Parking Mode. In Smart Parking Mode, the dash cam records incidents triggered by impacts only until its operating temperature is safe again to resume Motion and Impact Detection or Time Lapse Parking Mode.
Energy Saving Mode
Records footage triggered by impacts only, allowing the dash cam to reduce power consumption and remain in Parking mode for a longer duration.
Time Lapse
Time Lapse records footage at 2fps, allowing the dash cam to capture extended periods of uninterrupted video without a significant increase in power consumption.
Motion Detection
Initiates a 20-second recording when there is motion present in front of camera lenses or impact with the vehicle (10s before and 10s after the event).
Easy Wi-Fi Device Pairing
Hassle-free dash cam pairing with your compatible Android or iOS device via the THINKWARE DASH CAM LINK App. Once paired, adjust your dash cam’s settings or replay and download your latest driving videos on the go.
THINKWARE DASHCAM LINK
ADAS
Front Vehicle Departure Warning (FVDW)
Alerts the driver when the vehicle in front has started to move when the driver is at a full stop
Forward Collision Warning System (FCWS)
Calculates the speed and distance of the vehicle ahead, alerting the driver when the following distance becomes too close while travelling at speeds exceeding 40km/h
Lane Departure Warning System (LDWS)
Alerts the driver when the vehicle drifts off its designated lane when driving over 50km/h
Multiplexer Compatible
Get total coverage by transforming your Thinkware Dash Cam into a multi-channel surveillance system with the Multiplexer Box accessory.
Compatible dash cams: Q850, Q200, F200 PRO, F790, X800 and X700
NOTE: Q850 requires the Multiplexer Adaptor Cable for installation
GPS Data
Using the GPS data in dash cam, it can precisely pinpoint the vehicle’s location and routes with its driving speed on the map.
Safety Camera Alert
Pair the Q200 with the included GPS Antenna accessory to enable speed and red-light camera alerts and embed GPS data (speed, time, and location) into video footage.
2K Front, Full HD Rear Recording
The Q200 excels in capturing razor-sharp 2K QHD videos at 30fps, presenting crystal-clear footage with enhanced contrast and precise color balance. Powered by a dynamic Omnivision OS04C20 image sensor and advanced WDR technology, every detail is recorded, ensuring exceptional clarity, whether it’s day or night.
Super Night Vision 2.0
Revolutionize night time recording with enhanced video brightness and reduced image noise in low-light conditions with our advanced Super Night Vision technology. Leveraging Image Signal Processing (ISP) technology and real-time image processing, the system captures significantly greater detail at night. With the 2.0 version, enjoy the flexibility of having Super Night Vision in Continuous Mode and Parking Mode.
Super Night Vision ON
Super Night Vision OFF
Wide Dynamic Range (WDR)
Corrects images through color balance adjustment in environments with strong sunlight or shadows.
Smart Auto-Exposure (AE)
Adjusts the exposure to record clear footage when there is strong sunlight or headlight.
Dewarping Video Technology
Minimizes image distortion typically caused by a wide angle lens, and delivers a close-to-real image of the world.
Parking Surveillance Mode*
Elevate your parking protection with the ability to capture video evidence activated by impacts and/or motions while your vehicle is parked.
- Smart Parking Mode
- Energy Saving Mode
- Time Lapse
- Motion & Impact Detection
*Requires hardwiring cable accessory (included) and installation (professional installation recommended) or a THINKWARE OBD II cable accessory.
Smart Parking Mode
Prevents heat-related damage by automatically switching the dash cam to low-power mode if the vehicle’s interior temperature rises excessively during Parking Mode. In Smart Parking Mode, the dash cam records incidents triggered by impacts only until its operating temperature is safe again to resume Motion and Impact Detection or Time Lapse Parking Mode.
Energy Saving Mode
Records footage triggered by impacts only, allowing the dash cam to reduce power consumption and remain in Parking mode for a longer duration.
Time Lapse
Time Lapse records footage at 2fps, allowing the dash cam to capture extended periods of uninterrupted video without a significant increase in power consumption.
Motion Detection
Initiates a 20-second recording when there is motion present in front of camera lenses or impact with the vehicle (10s before and 10s after the event).
Easy Wi-Fi Device Pairing
Hassle-free dash cam pairing with your compatible Android or iOS device via the THINKWARE DASH CAM LINK App. Once paired, adjust your dash cam’s settings or replay and download your latest driving videos on the go.
THINKWARE DASHCAM LINK
ADAS
Front Vehicle Departure Warning (FVDW)
Alerts the driver when the vehicle in front has started to move when the driver is at a full stop
Forward Collision Warning System (FCWS)
Calculates the speed and distance of the vehicle ahead, alerting the driver when the following distance becomes too close while travelling at speeds exceeding 40km/h
Lane Departure Warning System (LDWS)
Alerts the driver when the vehicle drifts off its designated lane when driving over 50km/h
Safety Camera Alert with GPS
Stay informed with real-time alerts for speed and red light cameras, and embed GPS data (speed, time, and location) into recordings
Multiplexer Compatible
Get total coverage by transforming your Thinkware Dash Cam into a multi-channel surveillance system with the Multiplexer Box accessory.
Compatible dash cams: Q850, Q200, F200 PRO, F790, X800 and X700
NOTE: Q850 requires the Multiplexer Adaptor Cable for installation
Here’s what you get in the box
Q200 Dash Cam
12V Power Cable
Windshield Mount
Multiplexer Box
w/ Cable
Rear View Camera
w/ Cable
Interior Infrared Camera w/ cable
32GB MicroSD Card
Adhesive Cable Clips
Trim Tool
Warranty & QR Code
Spare Mounting Tape
Hardwiring Cable
Here’s what you get
in the box
Q200 Dash Cam
12V Power Cable
Windshield Mount
Adhesive Cable Clips
32GB MicroSD Card
Spare Mounting Tape
Rear View Camera
w/ Cable
Interior Infrared
Camera w/ cable
Hardwiring Cable
Multiplexer Box
w/ Cable
Trim Tool
Warranty & QR Code
THINKWARE QHD Comparison
 |
 |
 |
|
Q200 |
Q850 |
Q1000 |
|
| Front Resolution | 2K QHD | 2K QHD | 2K QHD |
| Rear Resolution | 1080p Full HD | 1080p Full HD | 2K QHD |
| THINKWARE CONNECTED | ● | ● | |
| Image Sensor | 4MP Omnivision OS04C20 | 5.14MP Sony STARVIS | 5.14MP Sony STARVIS |
| Wi-Fi w/ Dash Cam Link App | ● | ● | ● |
| GPS | External GPS | Built-in | Built-in |
| Viewing Angle | 125° | 125° | 156° |
| Super Night Vision | 2.0 | 2.0 | 3.0 |
| Parking Surveillance Mode | Smart Parking Mode, Motion & Impact Detection, Time Lapse and Energy Saving Mode |
Smart Parking Mode, Motion & Impact Detection, Time Lapse and Energy Saving Mode |
Motion & Impact Detection, Time Lapse and Energy Saving Mode |
| Road Safety Warning System | ● | ● | ● |
| Capacity | up to 256 GB | up to 256 GB | up to 256 GB |
THINKWARE 2K QHD Comparison
Q200 |
Q850 |
Q1000 |
|
| Front Resolution | 2K QHD | 2K QHD | 2K QHD |
| Rear Resolution | 1080p Full HD | 1080p Full HD | 2K QHD |
| THINKWARE CONNECTED | ● | ● | |
| Image Sensor | 4MP Omnivision OS04C20 | 5.14MP Sony STARVIS | 5.14MP Sony STARVIS |
| Wi-Fi w/ Dash Cam Link App | ● | ● | ● |
| GPS | External GPS | Built-in | Built-in |
| Viewing Angle | 125° | 125° | 156° |
| Super Night Vision | 2.0 | 2.0 | 3.0 |
| Parking Surveillance Mode | Smart Parking Mode, Motion & Impact Detection, Time Lapse and Energy Saving Mode |
Smart Parking Mode, Motion & Impact Detection, Time Lapse and Energy Saving Mode |
Motion & Impact Detection, Time Lapse and Energy Saving Mode |
| Road Safety Warning System | ● | ● | ● |
| Capacity | up to 256 GB | up to 256 GB | up to 256 GB |
Here’s what you get in the box
- Dash Cam
- 12V Power Cable
- Hardwiring Cable (length: 3m/10 ft)
- 32GB MicroSD Card
- Windshield Mount
- Spare 3M Mounting Tape
- Adhesive Cable Clips
- Trim Tool
- Quick Start Guide
- Rear View Camera
- Rear Cam Cable
- Multiplexer Box
- Multiplexer Box Cable (with power cable)
- V-Out Cable
- Interior Infrared Cabin Camera and cable
- Rear Camera Cable – F200 PRO / F790
NOTE: 3CH recording requires Multiplexer installation (professional installaton recommended)
Features
- 2K QHD 1440p @30fps
- 4 MP Omnivision
- 125° Wide Angle Lens
- Super Night Vision 2.0 (Driving/ Parking Mode)
- Advanced Video Clear Technology
- Parking Surveillance Mode (Smart, Motion & Impact Detection, Time Lapse and Energy Saving Mode)*
- Time Lapse (Record @2fps/ Playback @10fps)*
- Road Safety Warning System (LDWS/FCWS/uFCWS/FVDW)
- GPS Port for GPS Antenna
- Safety Camera Alert (Speed Camera & Red Light Camera)
- Easy Device Pairing
- THINKWARE Dash Cam Link App
- Supports MicroSD Cards up to 256 GB
- Supercapacitor
- Integrated Thermal Protection
- Anti-File Corruption
* Requires Hardwiring Cable (professional installation recommended) or OBD II Power Cable and installation for Parking Surveillance mode
Specifications
- Resolution:
Front – 2K QHD (2560 x 1440)
Rear – Full HD (1920 x 1080) - Camera:
Front – 4.0 MP Omnivision
Rear – 2.1 MP CMOS - Frame Rate: 30 fps
- Viewing Angle: 125° (Diagonal)
- Dimensions(WxDxH): 98.5 x 22.0 x 34.0 mm (3.9 x 0.9 x 1.3 inch)
- Weight: 68 g (0.157 lb)
- Storage Temperature: -20°~ 70° C (-4°~ 158° F)
- Operating Temperature: -10°~ 60° C (14°~ 140° F)
- Capacity: MicroSD card 32/64/128/256 GB (UHS-I)
- Input Power: DC 12/24V, Built-in Super Capacitor
- GPS: GPS Antenna Included
- Languages: English (US, UK), Arabic, Chinese (Simplified, Traditional, Traditional Hong Kong), Czech, French (Canada, France), German, Hebrew, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Thai

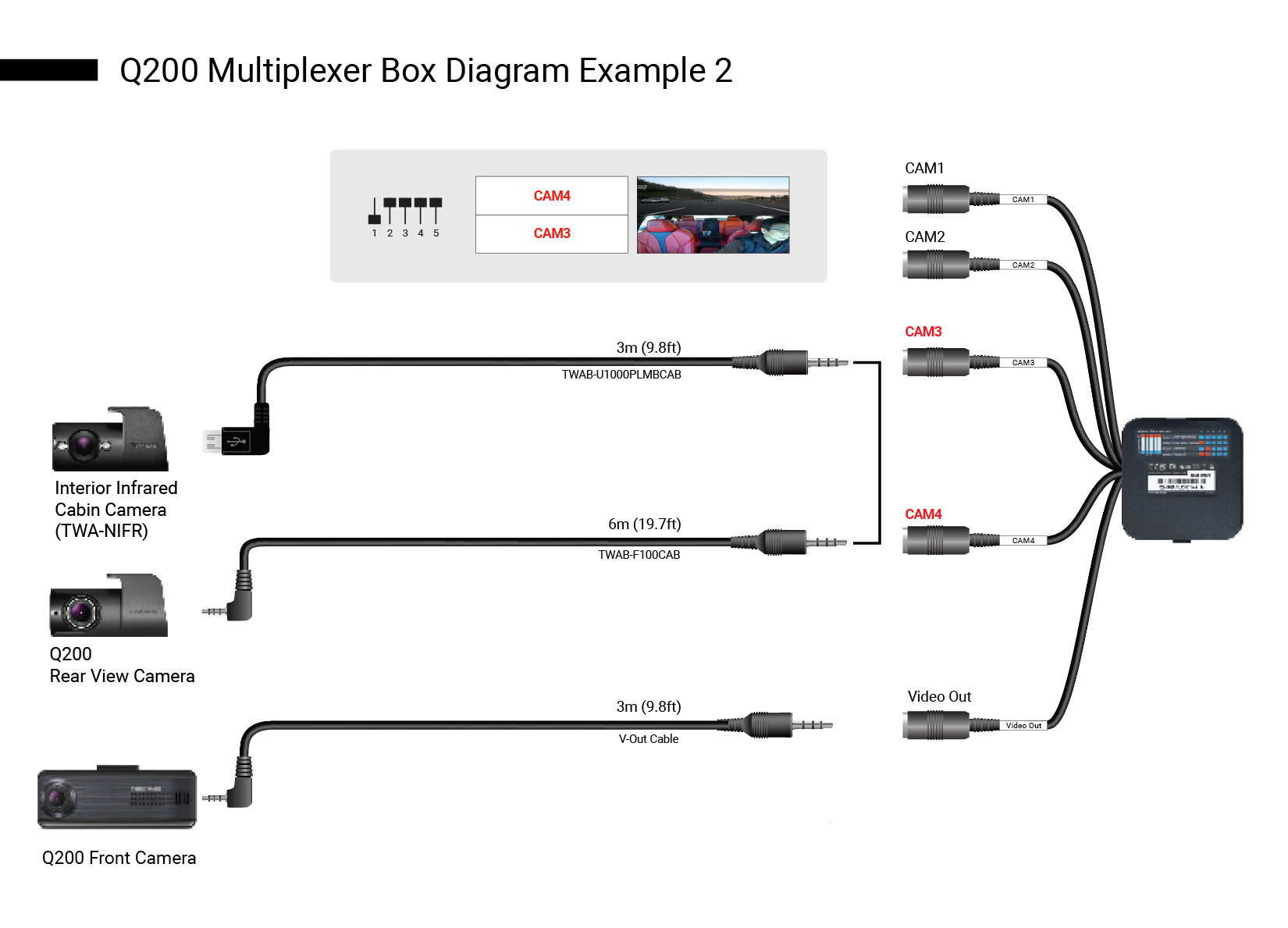

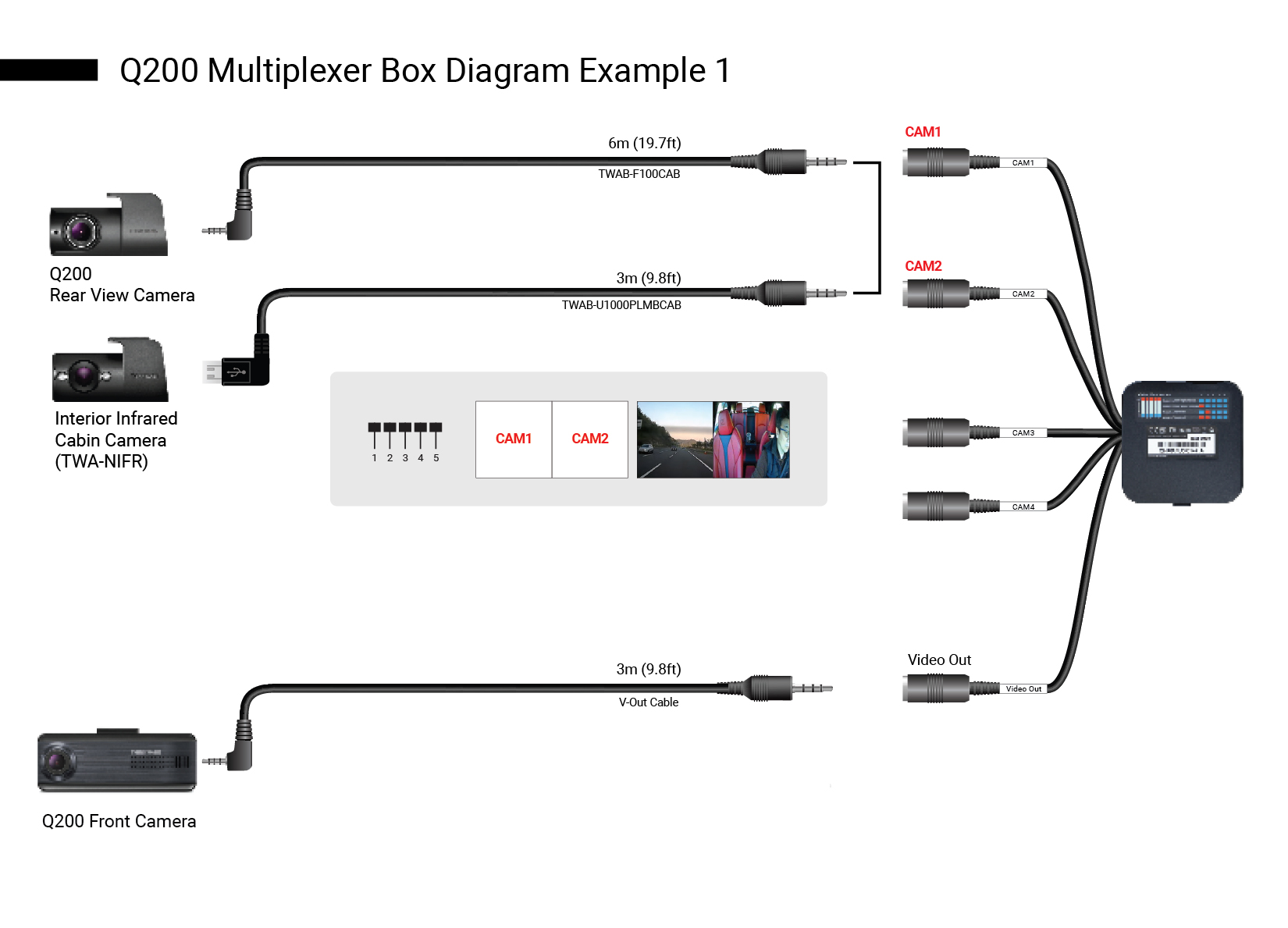

Multiplexer Box
- Key:
piano code switch
composite screen can be configured according to switch combination - Power Source:
2 (BAT, GND)
DC 12 V ~ 24 V
Cable length: 3 m - AV-IN (For optional camera connection):
4 cables (CAM 1, CAM 2, CAM 3, CAM 4)
2.5 pi Stereo-jack type
AFHD
Cable length to connecting connector: 15 cm - AV-OUT(For front camera connection):
1 cable (AV-OUT)
2.5 pi Stereo-jack type
For front camera connection
Cable length: 3 m - Recording Channel: Up to 4 Analog Full HD cameras can be input (total 5CH)
- Composite Video: Full HD (1920 x 1080) @ 30 fps
- Dimensions (WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
- Weight: 40.0 g (1.41 oz)
- Storage Temperature: -20°~ 70°C (-4°~ 158°F)
- Operating Temperature: -10°~ 60°C (14°~ 140°F)
Interior Infrared Cabin Camera
- Resolution: Full HD (1920 x 1080)
- Camera: 2.12 MP Pixelplus
- Wavelength: 940 nm
- Frame Rate: 30 fps
- Viewing Angle: 160° (Diagonal)
- Dimensions (WxDxH): 61.1 x 30.5 x 32.3 mm (2.41 x 1.20 x 1.27 inch)
- Weight: 25.5 g (0.90 oz)
- Cable Length: 50 cm (1.6 ft)
- Storage Temperature: -20°~ 70°C (-4°~ 158°F)
- Operating Temperature: -10°~ 60°C (14°~ 140°F)
